Home / Enclosure machining
Service 04 · For panel builders & machine manufacturers

Enclosure machining

Cut-outs, holes and threads – machined on our Rittal Perforex MT 2201. So you can spend your time on assembly and wiring again.

Request enclosure machining How it works

You can simply email us documents such as a 2D layout, circuit diagram or Eplan file after our first contact.

Sound familiar?

Still machining your enclosures by hand?

You build control panels yourself – and every enclosure means manual mechanical work before the real work can begin:

MeasuringMarking outTapingCentre punchingPilot drillingDrilling outCuttingFiling

Let’s be honest: not exactly everyone’s favourite workshop tasks. They take a lot of time – and the result depends on how the day is going.

We have the solution: WHP solutions machines your enclosures for you – by machine, accurate to the millimetre and on time.

Cartoon: a stressed, sweating panel builder sawing a cut-out into an enclosure door
The process

Five steps to a finished enclosure.

From ordering to delivery, we take care of everything. You only decide how much you want to prepare yourself.

  1. 01

    Enclosure

    We order the blank enclosures you need – or you supply your own.

  2. 02

    Production file

    The machining data comes from you or from us – there are three options.

  3. 03

    Machining

    The Perforex produces holes, threads and cut-outs fully automatically, exactly according to the file.

  4. 04

    Accessories optional

    On request, we fit plinths, side panels and other accessories.

  5. 05

    Shipping

    Carefully packed – delivered to you by freight forwarder or ready for collection in Hallwang.

approx. 2weeks

Committed lead time from order.*

Reliable planning for your projects: your machined enclosures are delivered or ready for collection around two weeks after your order.

* Provided that the required enclosures and accessories are available within this period.

The production file

Three options – your choice.

The machine needs a production file for machining. Whether you create it yourself or leave the work to us is up to you.

LayoutDrilling patternMachiningDelivery
Option A · All-inclusive package

Sit back and relax.

Send us your finished 2D panel layout – we turn it into the 3D model. Or simply tell us what you need and we will design the layout for you. We then export the drilling pattern, load it into the machine and machine your enclosure.

  • A 2D layout is enough
  • 3D layout by our designers
  • Ideal when resources are tight
Eplan Pro PanelRCSDXF
Option B

Your finished 3D layout

Already designing your control panels in 3D? Then send us your production data. We import it directly into the Rittal Panel Processing Center – the central software of the Perforex MT 2201 – and start machining.

We need one of these files:

  • Eplan Pro Panel
  • Rittal Configuration System
  • DXF file
Rittal RiPanelOnline configurator
Option C

Configure online with RiPanel

With Rittal’s free online configurator RiPanel, you define the enclosure, cut-outs and holes yourself – no CAD software needed. Send us the configuration and we’ll take care of the rest.

  • Simply in your browser, no installation
  • Detailed explainer video by Rittal (German)
Open RiPanel configurator Video: RiPanel explained
Your benefits

Machined, not laboured.

Outsource the mechanical machining – and focus on what your business does best.

Relief

Ideal support when you are short of capacity or staff.

Millimetre-precise

Cut-outs that are exact, straight and clean – no more crooked results.

High quality

Consistent precision – from the first to the last enclosure in a series.

Focus on what matters

Your team saves time and resources for assembly and wiring.

Our machine

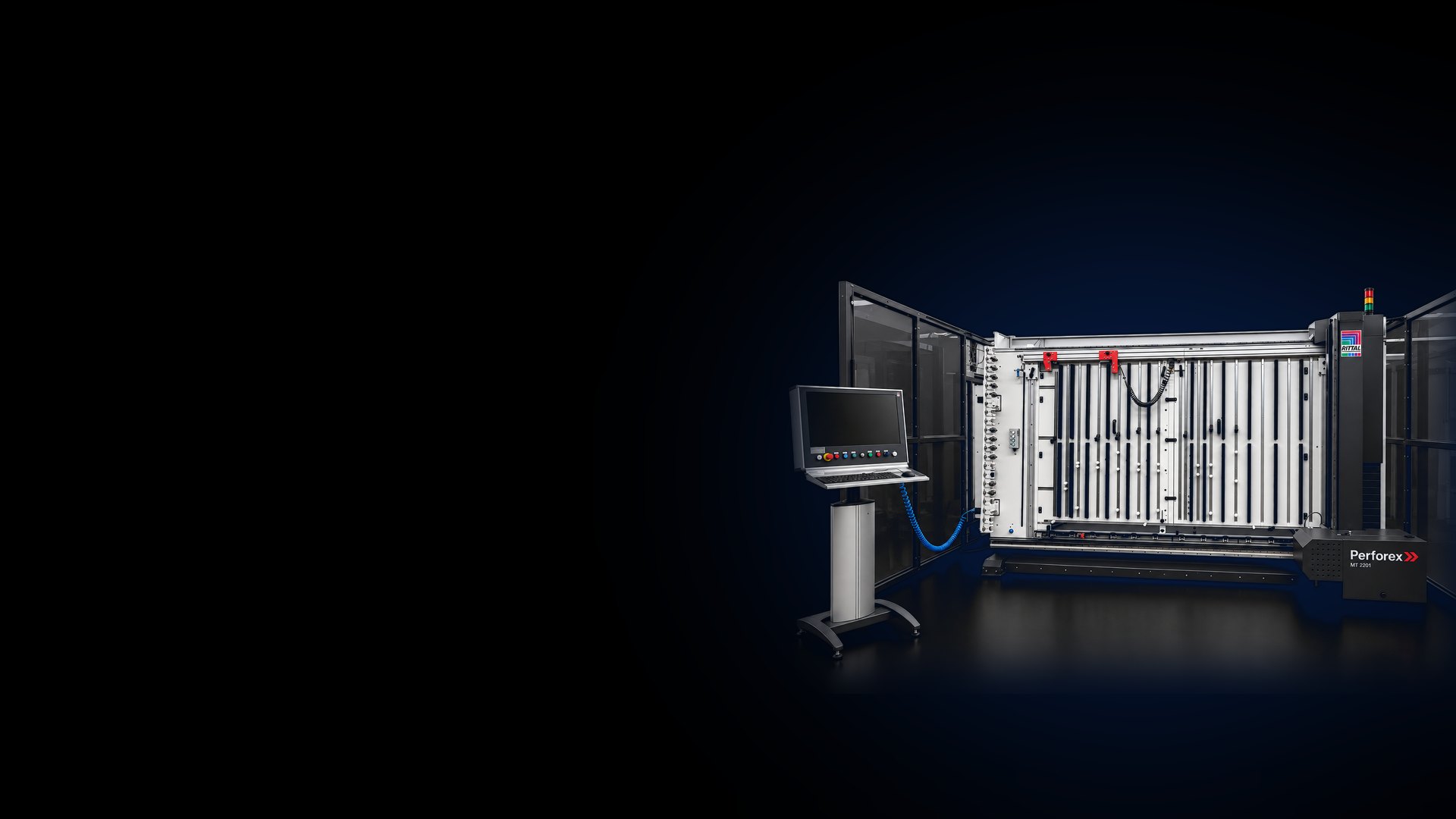

Rittal Perforex MT 2201

The CNC machining centre processes complete control panel enclosures, doors, side panels and mounting plates fully automatically – in sheet steel, stainless steel, aluminium, copper and plastic.

Drilling, tapping, milling – in a single pass.

Use the enclosure machining service by WHP solutions and benefit from the advantages of machine processing.

Drilling & threadsThrough holes and tapped holes exactly to the drilling pattern
Cut-outsRectangular and round cut-outs for displays, fans, cooling units & more
Who is it for?

For panel builders and machine manufacturers.

Single enclosure or series: our service is aimed at companies that no longer want to machine their enclosures themselves – or need extra capacity at short notice.

  • Panel builders with full order books
  • Machine and plant manufacturers with their own electrical workshop
  • Companies without their own CNC machining
  • One-offs, small batches and series
More about our panel building
Cartoon: a relaxed, cheerful panel builder wiring a cabinet, next to finished machined enclosures
